Ticket #1158 :: Remove or edit auto-refresh time-interval and time-interval in quick ranges

Ticket #1158 :: Remove or edit auto-refresh time-interval and time-interval in quick ranges






Solution Document


Remove or edit auto-refresh time-interval and time-interval in quick ranges

Overview

General/Customer specific

General

Author

SHIVANUR VIMARSHA VINOD

Reviewer

-

Approver

-

Release date

28/02/2024

Product Version

8.5r11


Audience: CSG/TechWarriors/PAC/Platform/Product teams


What’s the Issue?

Remove 5 sec and 10 sec auto-refresh time-interval. Update the “last 7 days” time frame from quick ranges to “last 3 days”.

Describe the Issue in Detail

        Keeping any dashboard in 5 or 10 sec auto-refresh is giving timeout error, which is affecting monitoring. As we retain T+2 days data i.e. Last 3 days,  need change the “last 7 days” to “last 3 days”.



Solution Summary

Solution Steps in Detail

Note - Take a backup of the files before changing anything..

1. Go to the shipper server.

2. cd opt/kibana/optimize/bundles

3. vi vienna_bundles.py

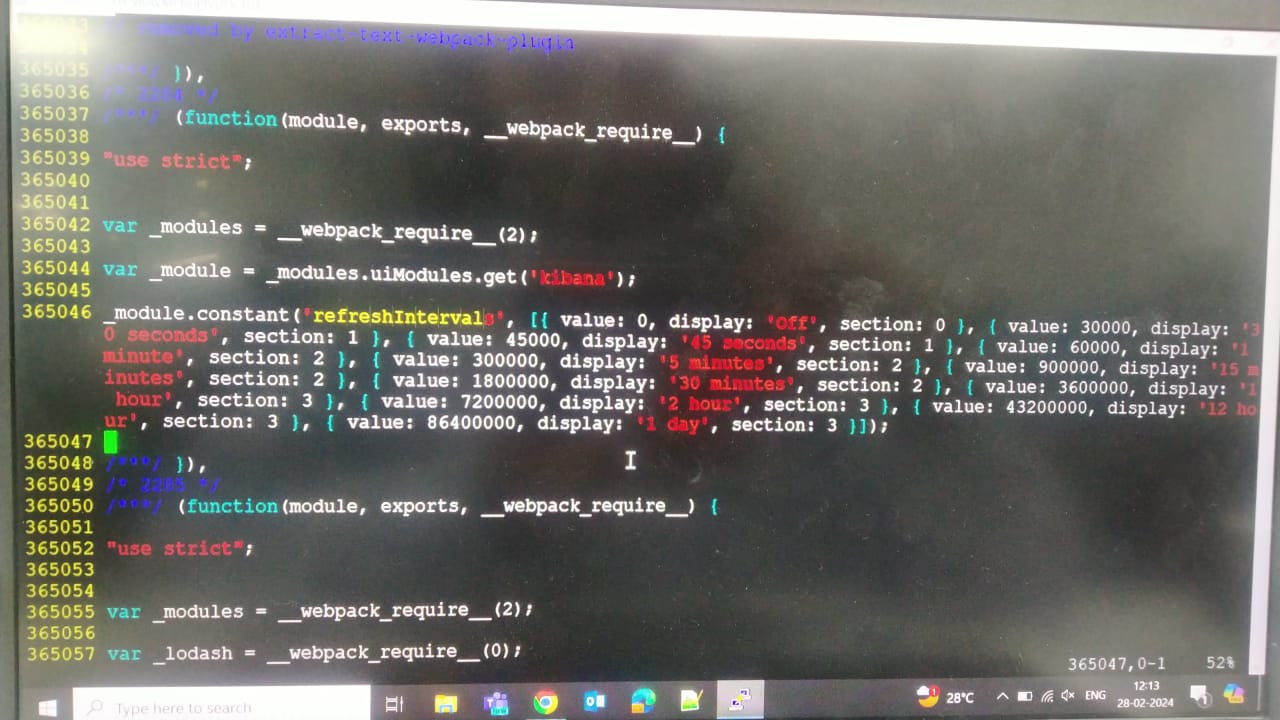

4. Search for the particular line of code as shown in the image.

WhatsApp Image 2024-02-28 at 12.14.19_cab8f2895. Delete the code of lines for a particular time interval. Suppose we need to remove 45 seconds auto-refresh time interval. Then the lines {value: 45000, display: "45 seconds", section:1 } should be deleted.

6. Search for the particular line of code as shown in the image.

WhatsApp Image 2024-02-28 at 12.24.32_f7dc73a0

  1. Edit the code lines accordingly. As we need to update last 7 day to last 3 days, change the code from “{ from: ‘now-7d’, to: ‘now’, display: ‘Last 7 days’, section: 2}” to “{ from: ‘now-3d’, to: ‘now’, display: ‘Last 3 days’}”

8. Save and exit the file.

9. Take Apache restart and confirm from UI.


Corrective actions if any to avoid in future

  1.


More Help:



References:
