#967 Equitas || Insight Viz not loading

#967 Equitas || Insight Viz not loading






Solution Document


VuSmartmaps Not Loading

Overview

General/Customer specific

General

Author

XYZ

Reviewer

Seema

Approver

 Ravi

Release date

13/09/2021

Product Version

8.X and 7.X


Audience: CSG/TechWarriors/PAC/Platform/Product teams


What’s the Issue?

Vulnerability fix required in Equitas

  1. Redis Server Unprotected by Password Authentication
  2. Apache mod_status /server-status Information Disclosure
  3. Elasticsearch Unrestricted Access Information Disclosure

Describe the Issue in Detail

         (Add Snaps Of the issue)



Solution Summary

Solution Steps in Detail

Note - (Add Snaps Of steps wherever applicable)

Redis Server Unprotected by Password Authentication

Issue : Redis was exposed to everyone and so it can share all the details.

Solution: To restrict access. We have removed redis access from the host machine as well as localhost. Port will only be accessible through containers only.

Action : Removed port from 4_redis.yml file.


Apache mod_status /server-status Information Disclosure

Issue: By exposing server-status it exposesA remote unauthenticated attacker can obtain an overview of the remote Apache web server's activity and performance by requesting the URL '/server-status'.  This overview includes information such as current hosts and requests being processed, the number of workers idle and service requests, and CPU utilization.

Solution: Remove the server-status from mod-status.conf file of apache2.


Action :  Perform below steps

  1. login to vuinterface-1

    vsmaps login vuinterface-1

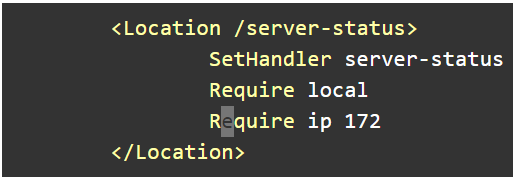

  2. open file  /etc/apache2/mods-enabled/status.conf and comment below line.


  1.  then save it and restart vuinterface container

Elasticsearch Unrestricted Access Information Disclosure

Issue:  The Elasticsearch application running on the remote web server is affected by an information disclosure vulnerability due to a failure to restrict resources via authentication. An unauthenticated, remote attacker can exploit this to disclose sensitive information from the database.

Solution : Block all the unauthenticated and remote access. To do this we have blocked all the remote access. It will be accessible only through localhost and container.

Action : Run below line on all the servers where elasticsearch is running.


Corrective actions if any to avoid in future

  1. No
