Issue : Unable to download the report for data table & All Visual expect BMV , BMV will be downloadable, but data is not showing .

Verified By Arvind Govind arvind@vunetsystems.com

Prepared By Naveen Sai  Naveen.sai@vunetsystems.com

NOTE : All the changes we have made in non-sudo user centos setup. Others can follow the same steps as per their setup requirements.

Step 1 : Login to Kibana running Shipper. Step 2 : Locate report/index.js

Step 2 : you will see the below mentioned paths .Go to the below mentioned Paths .

Workspace/opt/kibana/src/core_plugins/kibana/server/routes/api/report

Workspace/ kibana/src/core_plugins/kibana/server/routes/api/report Note : path will vary, according to the Client .

Step 3: Open the Files Index.js using vim command.

vi Index.js

Step 4 : Making the changes in all the files where index.js is there .

Step 5: Change the ip to the server Ip from loop back .Give the port according to your situation. Example : in our scenario port is 10443.

From : 127.0.0.1:10443

To : 10.24.1.67:10443

Here 10.24.1.67 is the main shipper IP.

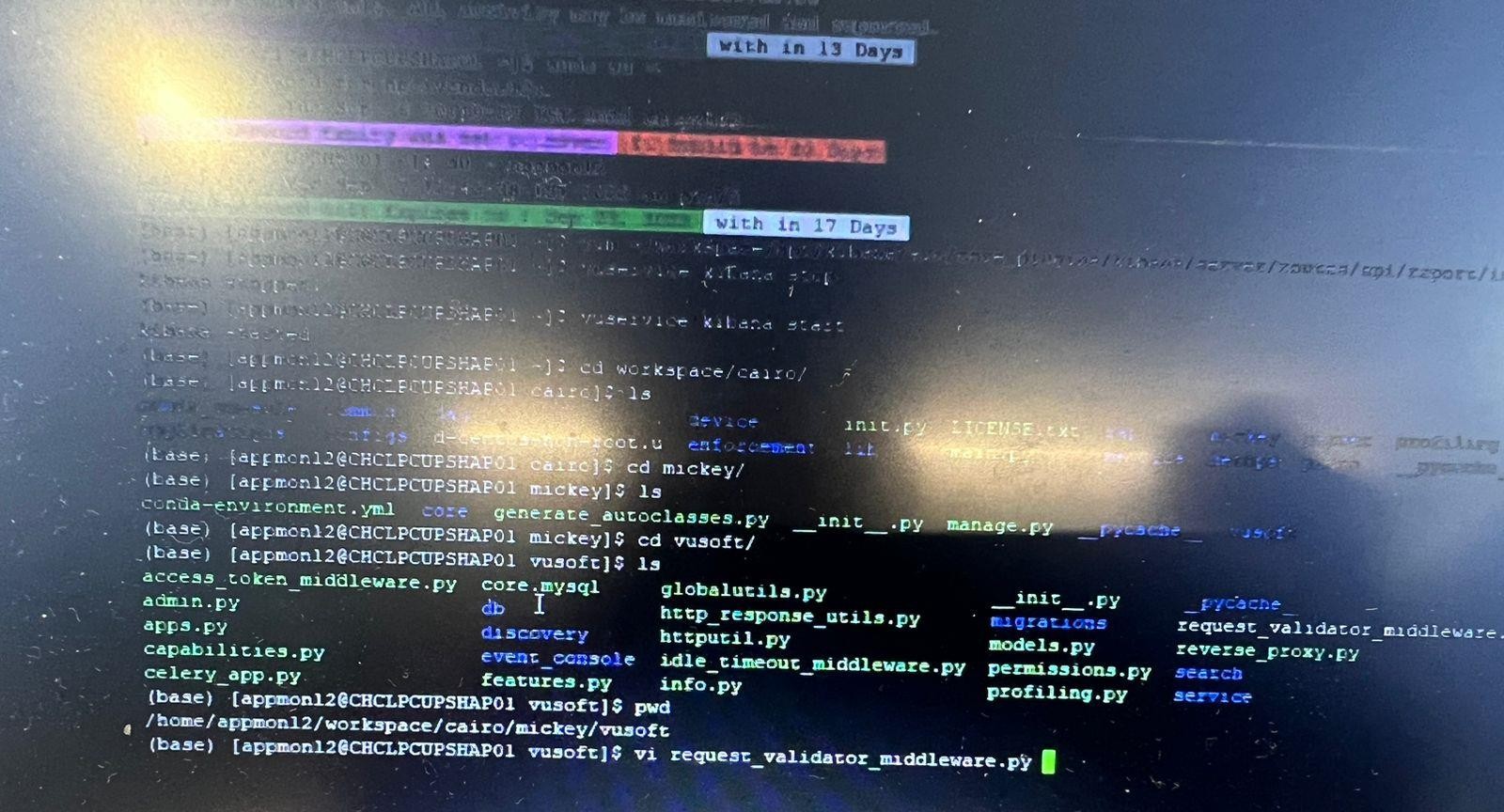

Steps 6 : Refer to the Snap Shots for Better Understanding .



                      Step 7 : Go to below mentioned path .

/home/appmonl2/workspace/cairo/mickey/vusoft/ Note : Path will be depand on the client .

Step 8: Open the file request_validator_middleware.py using vi

                     Step9 : refer to the snap .

Step 10 : Search for Rejecting using below command

/Rejecting

Step 11 : Make the Changes As per the snaps we have added one more if condition as

 or request.META[‘REMOTE_ADDS’] == “10.24.1.67”

 request.META[‘SERVER_NAME’] == “10.24.1.67” :

added above 2 lines , Check the snaps for better Understanding.

Note : Here , 10.24.1.67 is the Shipper IP.

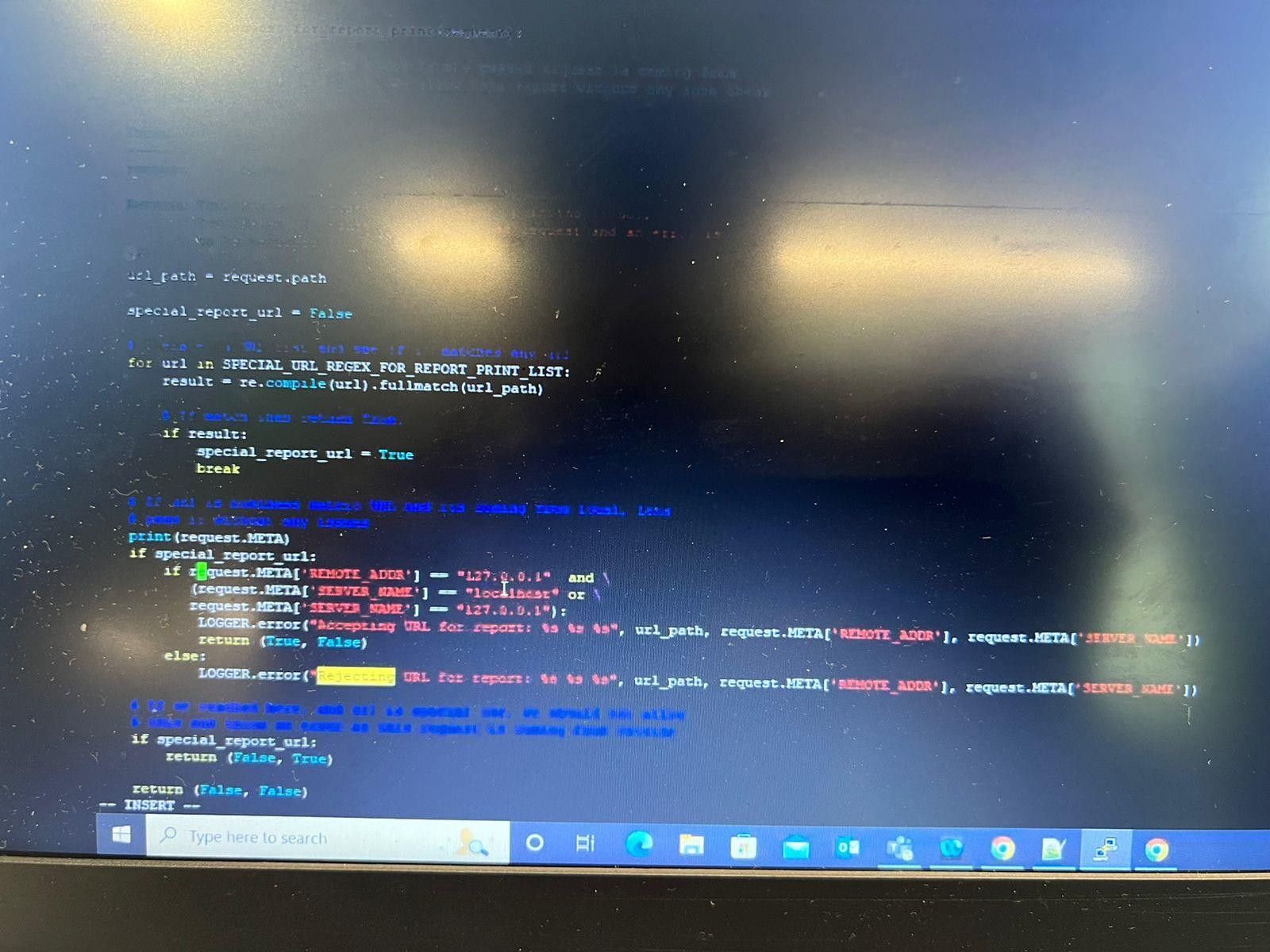

                       Step 12 : Before making the changes

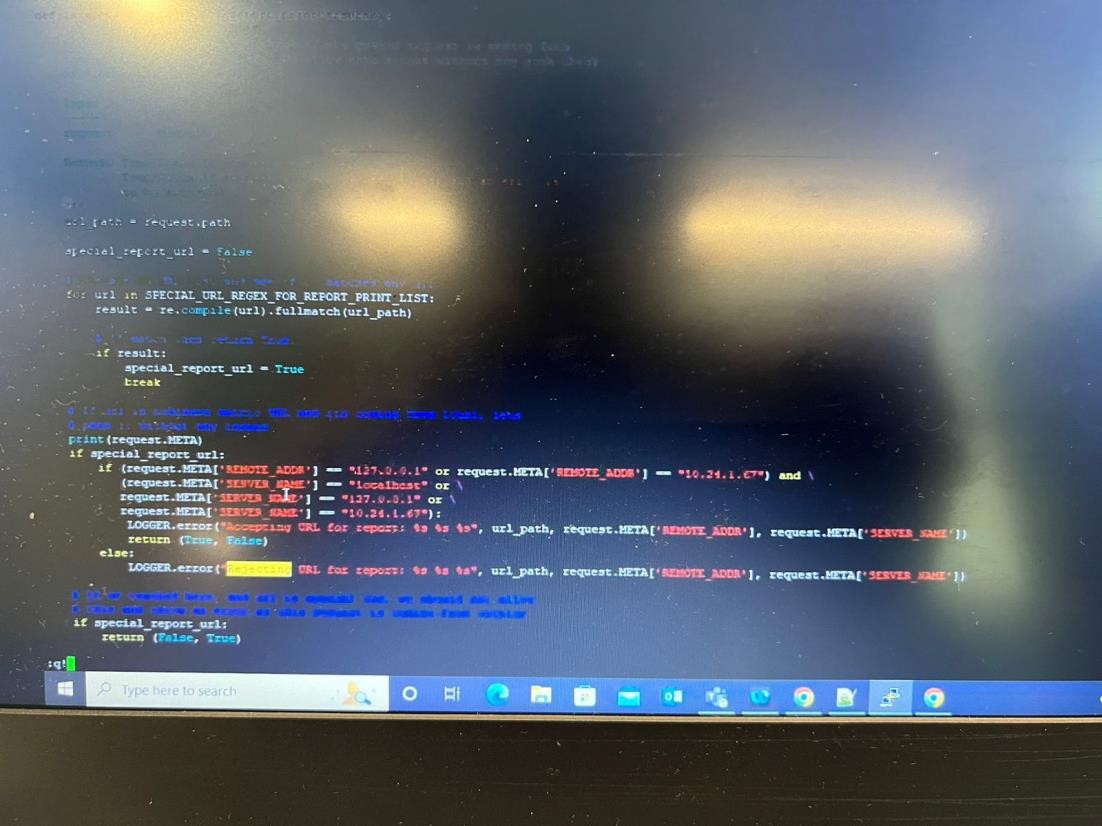

Step 13 : After Making the changes .

Step 14 : Restart Kibana , Apache2, and DAQ .

Vuservice httpd stop/start

     Vuservice kibana stop/start

     daq

Step 15 : Now , login check . It will work.
